2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light
2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light 2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light 2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light 2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light 2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light 2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

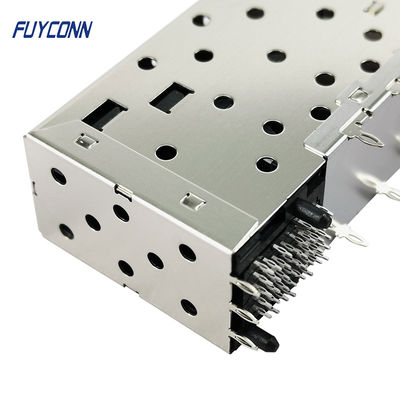

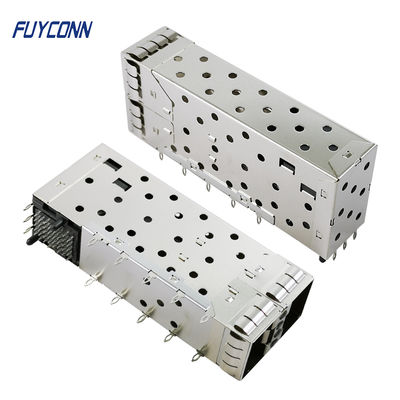

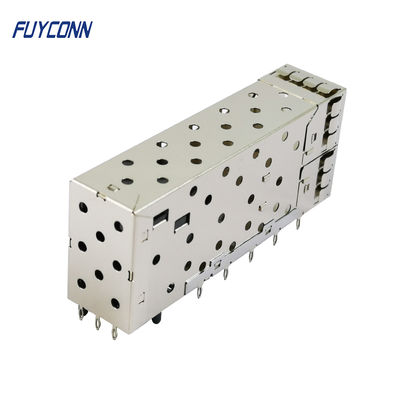

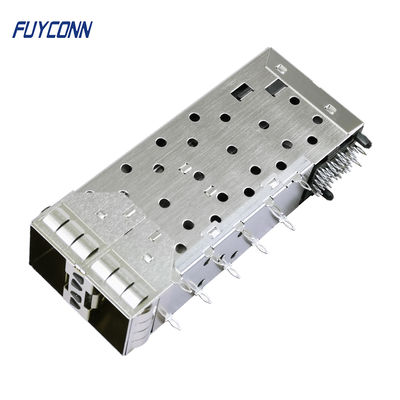

Imagem Grande :  2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

Detalhes do produto:
Lugar de origem: Guangdong, China
Marca: FUYCONN
Número do modelo: FUYSFP017-28
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 100
Preço: $5
Contato

2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light

descrição
Número de portas: 2*1 portas duplas Número de terminais: 40 pinos
Gênero do conector: Fêmea Cor: Nick Silver
Material isolador: PBT Material do alfinete de contacto: Bronze de fósforo
Tipo de patas: PIN sem solda Lightpipe: Sim
Classificação atual: 1AMP Tensão de suporte: 500V por um minuto
Resistência do isolador: 500mΩ min (em DC500V) Resistência ao contato: 35mΩ máx
Temperatura de operação: -55°C a +105°C Taxa de velocidade de dados: Até 10 GB/s
Tipo de montagem: PCB
Destacar:

2 port SFP+ connector PCB mount

,

40 pin female SFP+ connector

,

SFP+ connector with light indicator

2x1 2 Port SFP+ Cage Connector, Press-Fit Termination Small Form-factor Pluggable Plus 40 Position SFP+ Connector w/ Light
Product Overview

The SFP+ (Small Form-factor Pluggable Plus) connector is a high-performance optical transceiver designed for data communication applications. This 2x1 2-port configuration features press-fit termination and includes a lightpipe for status indication.

Technical Specifications
Feature Specification
Product Name SFP Connector
Product Line Small Form-factor Pluggable
Connector Gender Female Centronic Connector
Contact Type Small Form-factor Pluggable
Number of Positions 40pin
Ports 2x1 2 Ports
Contact Material Phosphor Bronze
Finish Nickel Silver
Insulation Material PBT
Lightpipe Yes
Electrical Specifications
Parameter Value
Current Rating 1AMP
Withstanding Voltage 500V for one minute
Insulator Resistance 500MΩ min (at DC500V)
Contact Resistance 35MΩ Max
Operation Temperature -55°C to +105°C
2x1 2 Port SFP+ Connector 40 Pin Female PCB Mount with Light 0
Applications
  • Networking equipment
  • Router/Switch
  • Data/Communications
  • High-end servers
  • Telecommunications
  • Switches
  • Telecommunications hardware
  • Fibre Channel and Gigabit Ethernet
  • Servers
Packaging & Shipping

Our products are securely packaged using:

  • Vacuum Tray
  • PE Bag
  • Strong bags/boxes/cartons
  • PE Bag + Strips
About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.

Quality Assurance
  • UL- and SGS-certified
  • RoHS compliant
  • Product defect rate less than 0.5%
  • 99% customer repeat rate
Why Choose Us
  • 16 years Centronic Connector production experience
  • Experienced R&D team
  • Thousands of molds available
  • Factory-direct pricing
  • Fast sample delivery (within 2 days)
  • Short lead times (within 1 week)
  • No minimum order quantity
  • Custom branding available
  • Full production control
  • Multiple payment methods
