6 Port SFP+ Cage with Light Pipe Press-Fit Termination 1x6

Imagem Grande : 6 Port SFP+ Cage with Light Pipe Press-Fit Termination 1x6

Detalhes do produto:

Lugar de origem:	Guangdong, China
Marca:	FUYCONN
Número do modelo:	FUYSFP2034

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	100
Preço:	$5

Contato

6 Port SFP+ Cage with Light Pipe Press-Fit Termination 1x6

descrição

Tipo de conector:	PCB	Número de portas:	1*6 portas duplas
Gênero:	Fêmea	Cor:	Nick Silver
Material isolador:	PBT	Material do alfinete de contacto:	Bronze de fósforo
Feets:	Pressione PIN	Lightpipe:	com tubo de luz
Classificação atual:	1AMP	Tensão de suporte:	500V por um minuto
Resistência do isolador:	500mΩ min (em DC500V)	Resistência ao contato:	35mΩ máx
Temperatura de operação:	-55°C a +105°C	Taxa de velocidade de dados:	Até 10 GB/s
Configuração da porta:	6 portos
Destacar:	6 port SFP+ cage with light pipe , press-fit SFP+ connector 1x6 , SFP+ cage with press-fit termination

Press-Fit Termination 1x 6 SFP Cage Without Light, SFP Series 6 Ports Straight SFP+ Cage

Product Overview

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a major optical transceiver for data communication. Introduced in early 2000 to replace the GBIC connector, it offers greater port density while handling up to 4.25Gb/s. The SFP+ (SFP10) extension, introduced in 2006, supports data rates up to 10Gb/s for Fibre Channel, 10GbE, SONET, OTN, and other standards.

Product Features

Product Name:	SFP Cage
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Contact Type:	Small Form-factor Pluggable
Number of Positions:	No Connector, Cage only
Ports:	1x6 (6 Ports)
Finish:	Nickel Silver
Lightpipe:	With Light

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch
Data/Communications
High-end servers
Networking
Telecommunications
Switches
Telecommunications hardware
Fibre Channel and Gigabit Ethernet
Servers

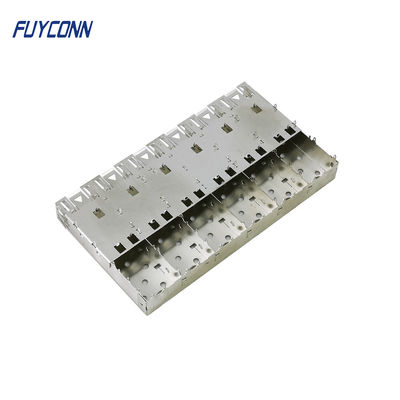

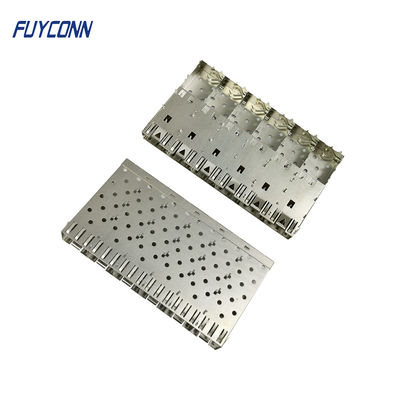

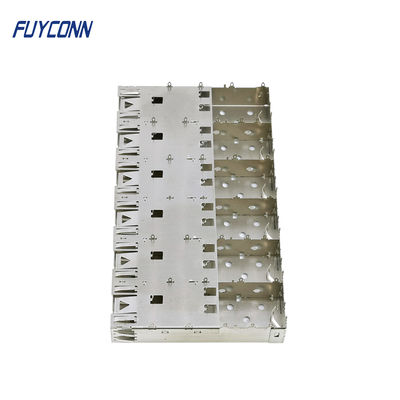

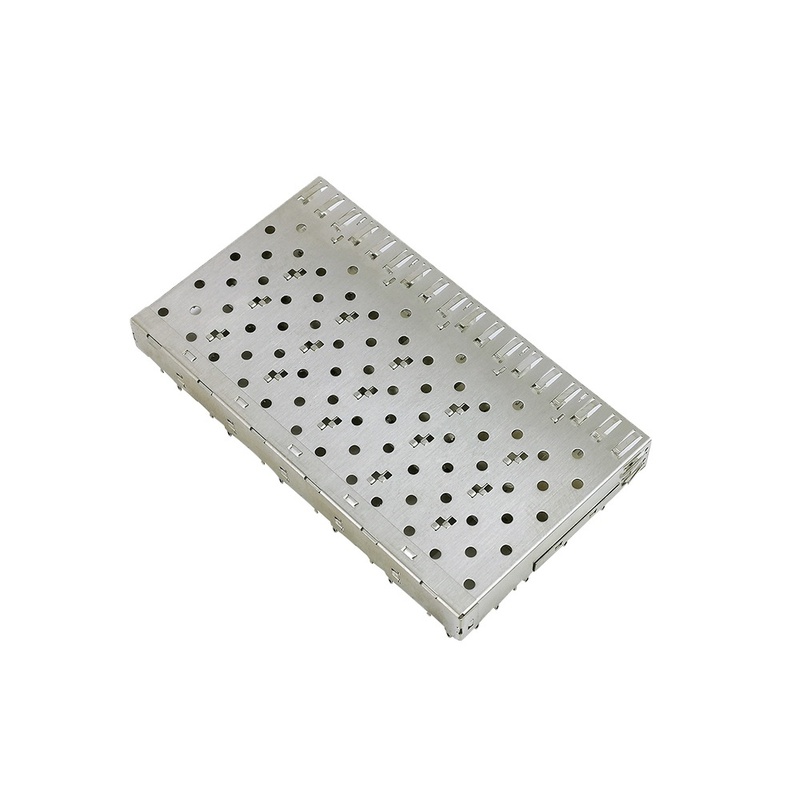

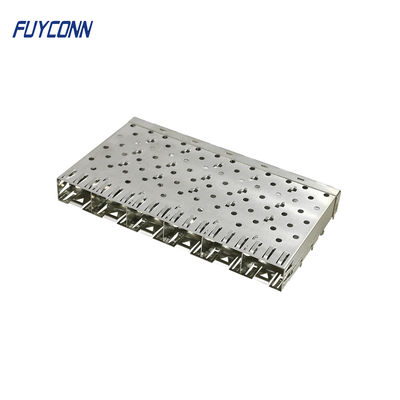

Product Images

Packaging & Shipping

Strong Package Options:

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips
