2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

Imagem Grande : 2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

Detalhes do produto:

Lugar de origem:	Guangdong, China
Marca:	FUYCONN
Número do modelo:	FUYSFP2010-28

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	100
Preço:	$15

Contato

2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

descrição

Material de contato:	Latão	Gênero:	Fêmea, fêmea
Contagem de terminais:	40 pinos	Contagem de portas:	2*1 portas duplas
Cor:	Nick Silver	Material isolador:	PBT
Material do alfinete de contacto:	Bronze de fósforo	Tipo de patas:	Pressione PIN
Tubo de luz:	com tubo de luz	Classificação atual:	1AMP
Tensão de suporte:	500V por um minuto	Resistência do isolador:	500mΩ min (em DC500V)
Resistência ao contato:	35mΩ máx	Temperatura de operação:	-55°C a +105°C
Taxa de velocidade de dados:	até 4,25 GB/s
Destacar:	2x1 female SFP connector with light pipe , 40 pin press-fit SFP connector , female SFP connector with press-fit

2x1 Female SFP Connectors with Light Pipe Press-Fit Stackable Multi-Port Housing Shielded Cage Connector

Product Overview

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is widely used in data communication systems. Introduced in early 2000 to replace GBIC connectors, SFP connectors offer greater port density while supporting up to 4.25Gb/s according to IEEE 802.3 and SFF-8472 specifications. The SFP+ variant, introduced in 2006, extends this capability to 10Gb/s while maintaining the same form factor.

Key Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Contact Type:	Small Form-factor Pluggable
Number of Positions:	40pin
Ports:	2x1 (2 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch
Data/Communications
High-end servers
Telecommunications
Switches
Telecommunications hardware
Fibre Channel and Gigabit Ethernet

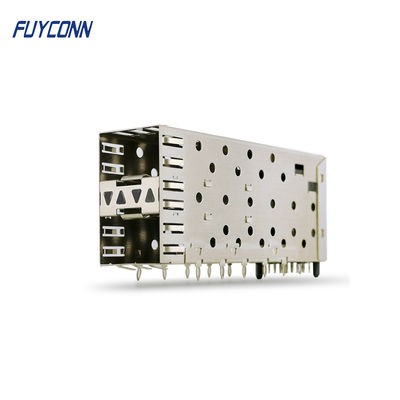

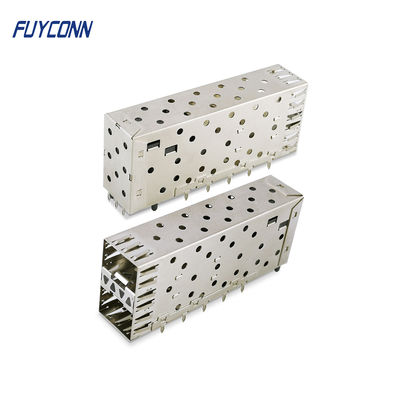

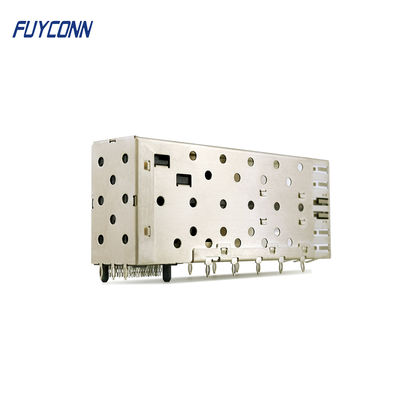

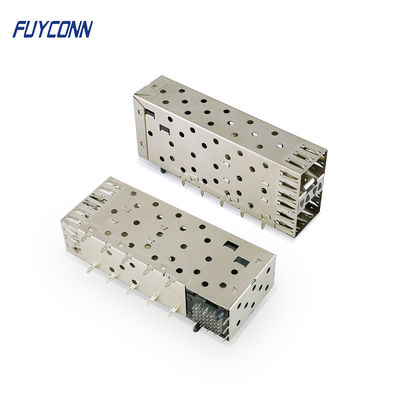

Product Images

Packaging & Shipping

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for your choice.

Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers 5,000 square meters with dedicated R&D, molding, plastic injection, stamping, and assembly facilities.
