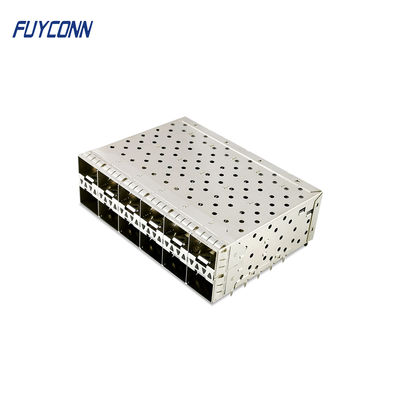

240 Pin Fiber Module Base Solderless Small Form-factor Pluggable Plus SFP+ Connector W/ Light, 2*6 Dual Port SFP Connector
Product Description
The SFP (Small Form-factor Pluggable) module connector with various data speed rates is a major optical transceiver used for data communication. First introduced in early 2000, SFP connectors were designed to replace the previous gigabit interface converter (GBIC) in fiber optic and Ethernet high-speed networking systems. Based on IEEE 802.3 and SFF-8472 protocol specifications, SFP module connectors can handle up to 4.25Gb/s with greater port density than GBIC, earning them the nickname "mini GBIC."
To meet the demand for faster transmission speeds, the SFP+ (or SFP10) was introduced in 2006 as an extension of the SFP connector. Following IEEE802.3ae, SFF-8431, and SFF-8432 protocol specifications, SFP+ supports data rates up to 10Gb/s. While similar in size to SFP, SFP+ supports Fibre Channel, 10GbE, SONET, OTN, and other communication standards. Both SFP and SFP+ connectors are available in copper and optical variants.
Product Features
| 1. Product Name: | SFP Connector |
| 2. Product Line: | Small Form-factor Pluggable |
| 3. Connector Gender: | Female Centronic Connector |
| 4. Contact Type: | Small Form-factor Pluggable |
| 5. Number of Positions: | 240pin |
| 6. Ports: | 2*6 12 Ports |
| 7. Contact Material: | Phosphor Bronze |
| 8. Finish: | Nickel Silver |
| 9. Insulation Material: | PBT |
| 10. Lightpipe: | with |
Electrical Specifications
| 1. Current Rating: | 1AMP |
| 2. Withstanding Voltage: | 500V for one minute |
| 3. Insulator Resistance: | 500MΩ min (at DC500V) |
| 4. Contact Resistance: | 35MΩ Max |
| 5. Operation Temperature: | -55°C to +105°C |
Applications
- Networking equipment
- Router/Switch
- Data/Communications
- High-end servers
- Networking
- Telecommunications
- Switches
- Telecommunications hardware
- Fibre Channel and Gigabit Ethernet
- Servers
Product Images
Packing & Shipping
Strong Package: - Vacuum Tray
- PE Bag
- Take strong bags/boxes/cartons
- PE Bag + Strips
Company Profile
Dongguan Fuyconn Electronics Co., Ltd
Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for your choice.
Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our product defect rate is less than 0.5% and 99% of our customers repeat their orders with us. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 5,000 square meters with R&D Department, molding workshop, Plastic Inject workshop, Stamping workshop, and Assembly production lines.
Why Choose Us
- 16 years Centronic Connector production experience
- R&D engineers with over twenty years' working experience
- Thousands molds for your choice
- UL Certified, ROHS compliant
- Factory-direct price
- Free sample within 2 days
- Short lead time, within one week for normal products
- No MOQ, you can try our products and services easily
- Customer's Logo can be added on to product and package
- Plastic Inject workshop, Stamping workshop, Assembly production lines - we control quality, costs, and delivery time better than competitors
- Variety payment methods
