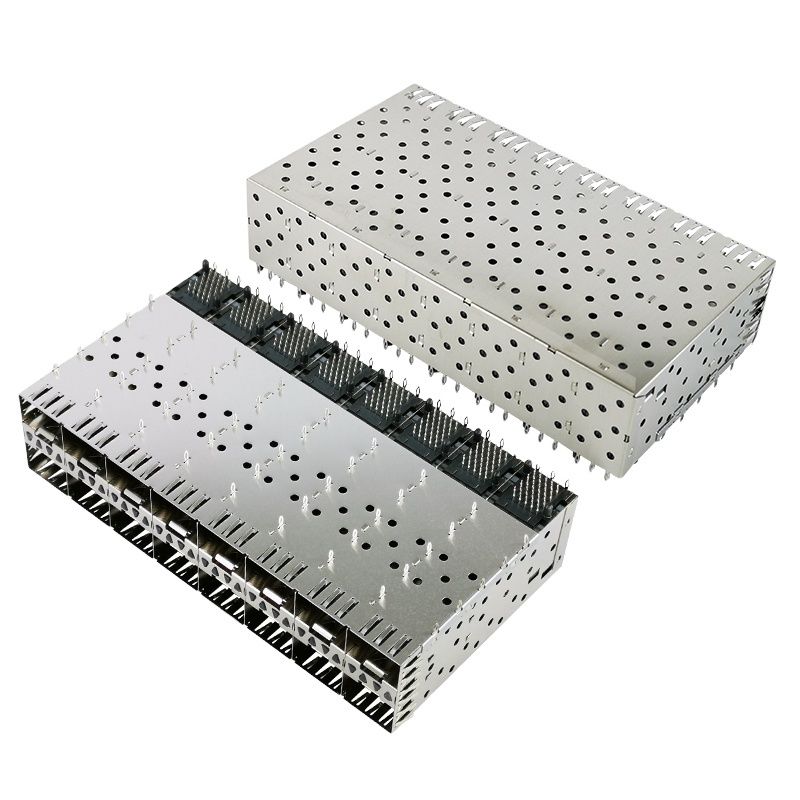

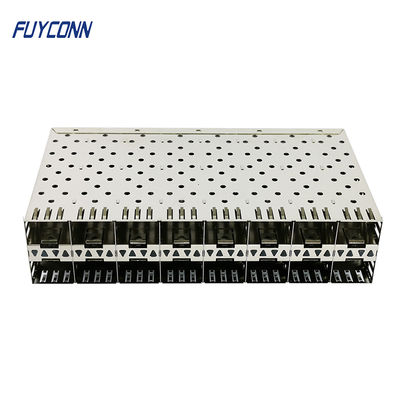

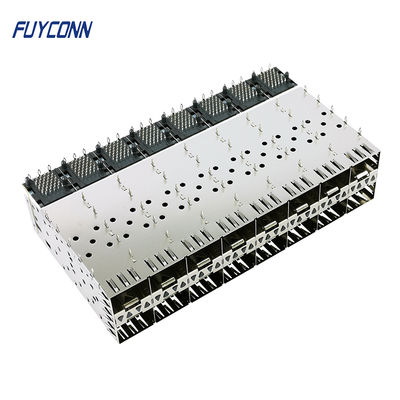

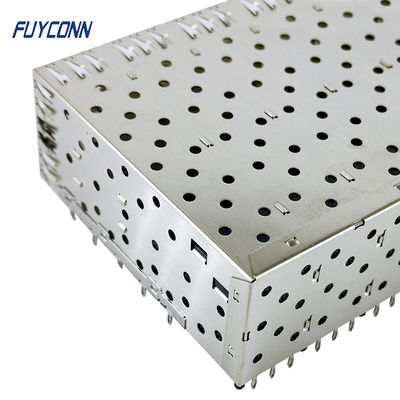

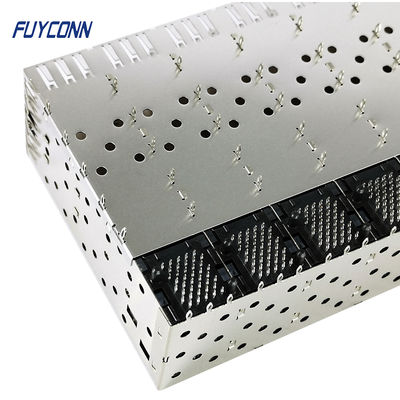

320pin 2x8 Ports SFP Connector Female Press-Fit with Light

Imagem Grande : 320pin 2x8 Ports SFP Connector Female Press-Fit with Light

Detalhes do produto:

Lugar de origem:	Guangdong, China
Marca:	FUYCONN
Número do modelo:	FUYSFP2054-49

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	100
Preço:	$20

Contato

320pin 2x8 Ports SFP Connector Female Press-Fit with Light

descrição

Número de pinos:	320pin	Número de portas:	2*8 portas duplas
Gênero do conector:	Fêmea	Material isolador:	PBT
Material do alfinete de contacto:	Bronze de fósforo	Tipo de montagem:	Press-fit
Lightpipe:	Sim	Classificação atual:	1AMP
Tensão de suporte:	500V por um minuto	Resistência do isolador:	500mΩ min (em DC500V)
Resistência ao contato:	35mΩ máx	Temperatura de operação:	-55°C a +105°C
Taxa de velocidade de dados:	Até 10 GB/S (SFP+)	Terminar:	De aço inoxidável
Empilhável:	Sim
Destacar:	320pin SFP connector female press-fit , 2x8 ports SFP connector with light , press-fit SFP connector with warranty

320pin Press-Fit Stackable 2x8 Ports SFP Connector with Light

SFP Cage Assembly 2-by-8 Multi-Port Female Connector

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is widely used in data communication systems. Introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s. These connectors support Gigabit Ethernet, Fibre Channel, SONET, and other communication standards.

The enhanced SFP+ version, introduced in 2006, supports data rates up to 10Gb/s while maintaining the same compact size. Both SFP and SFP+ connectors are available in copper and optical variants, making them versatile solutions for high-speed networking applications.

Product Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Number of Positions:	320pin
Ports:	2×8 (16 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch systems
Data/Communications infrastructure
High-end servers
Telecommunications hardware
Fibre Channel and Gigabit Ethernet systems

Packaging & Shipping

Our products are securely packaged using:

Vacuum trays for protection
PE bags for moisture resistance
Sturdy boxes/cartons for shipping
PE bags with strips for added security

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our UL- and SGS-certified products comply with RoHS directives and maintain a defect rate below 0.5%. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
